Swing check valve LF-CVC Texoon
Size
1/2in
3/4IN
1in
1 1/4in
1 1/2in
2in
Material
Brass
Pressure
Low Pressure
Specification
●Forged Brass Body, Regular Port
●Solder-Joint Conform to ASME B16.22
●Max Working Pressure :200 PSI
●Working Temperature :32~ 212°F

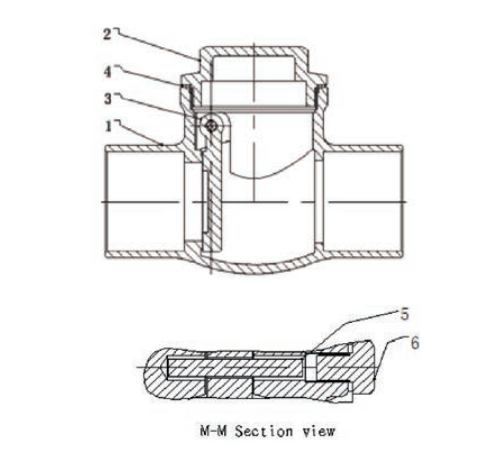

Model & Structure Dimension
|
Model
|
Size
|
Port
|
|
LF-CVC050
|
1/2″
|
0.512″
|
|
LF-CVC075
|
3/4″
|
0.709″
|
|
LF-CVC100
|
1″
|
0.906″
|
|
LF-CVC125
|
1-1/4″
|
1.181″
|
|
LF-CVC150
|
1-1/2″
|
1.37 8″
|
|
LF-CVC200
|
2″
|
1.772″
|
Material List
|
No.
|
Name
|
Material
|
QTY
|
|
1
|
Body
|
Lead Free Brass
|
1
|
|
2
|
Bonnet
|
Lead Free Brass
|
1
|
|
3
|
Disc
|
Lead Free Brass
|
1
|
|
4
|
Washer
|
Fiber
|
1
|
|
5
|
Pin
|
Lead Free Brass
|
1
|
|
6
|
Bolt
|
Brass
|
1
|
